How to Extract Events from a Sampled Signal

Some formats hand you events already extracted: a TDT epoc store, a Spike2 marker channel, a CSV of timestamps. Others record the events as a signal, a sampled trace you have to read: a TTL line packed into a digital word, a photodiode wired into an analog input, a camera’s frame-out pulse. This guide is how you specify the extraction for that second kind. It is an explanation of detection_configuration, the argument the signal-encoded events interfaces take: which signals are read, how each one becomes a line, and which of its transitions become events.

What those events are then called and how they are laid out in the file is a separate job, the editable events metadata, covered in How to Annotate Discrete Events Metadata.

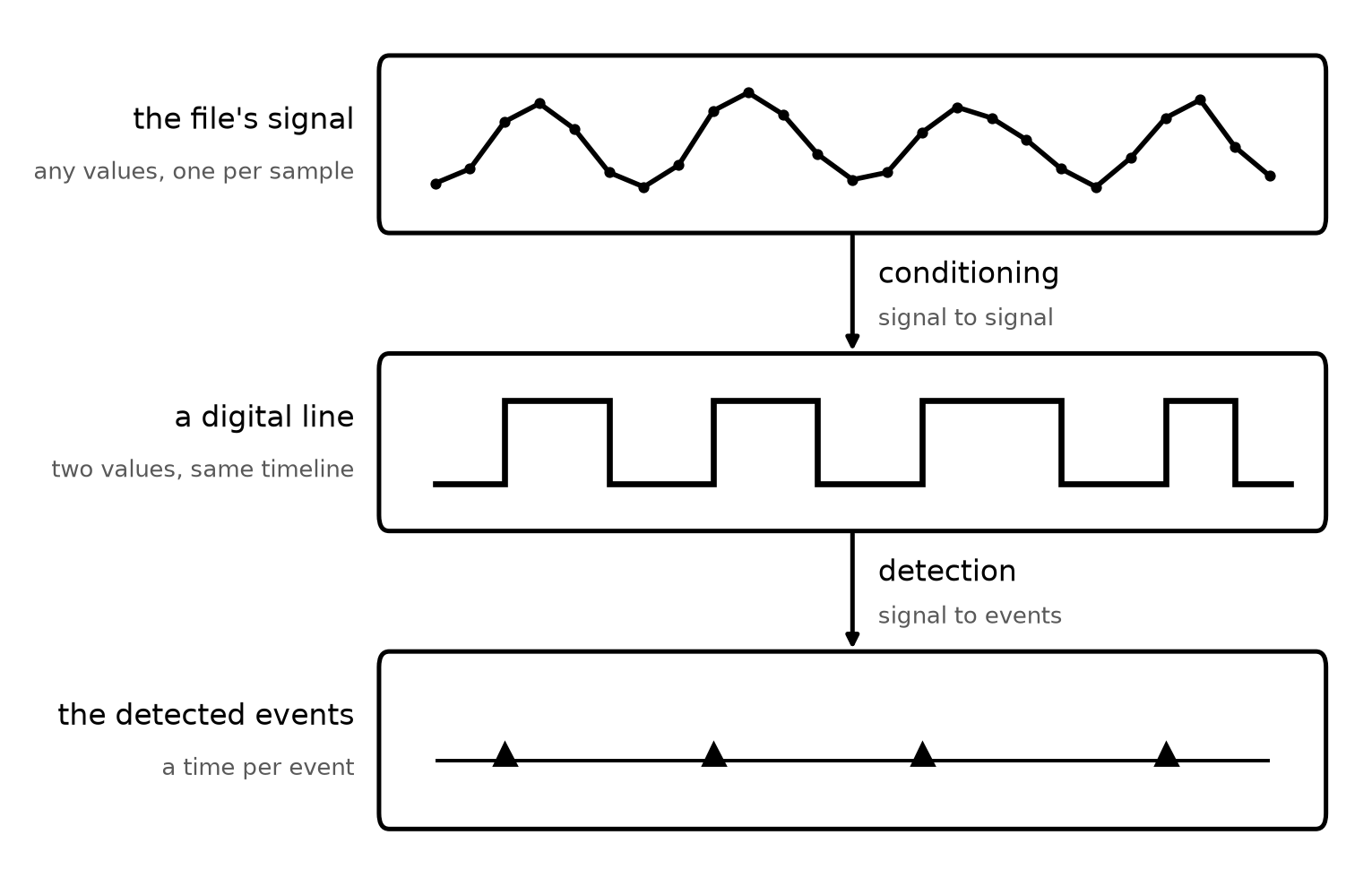

The event detection model

Every event type is read in two stages, and each detection spec states both.

Conditioning turns whatever the file carries into a line: a two-valued signal, the same length as the original and on the same timeline. Detection then reads that line’s transitions as events. The boundary between the two is where the data type changes: conditioning is signal to signal, detection is signal to events.

That conditioning always returns a two-valued signal is the contract the rest of the grammar rests on. It is why the readings below need no threshold of their own, and why an edge is simply a transition from the lower value to the higher one.

Both routes land on the same thing, which is why the reading vocabulary is the same whatever the signal was.

You can watch the model run without writing a file. get_event_type_source_ids() lists the event types a configuration resolves to and get_event_times(event_type_source_id) hands back one type’s times, which is the quickest way to find out that a cut sits on the wrong side of the noise, or that a line you expected to fire never toggled.

Conditioning: how a signal becomes a line

There are exactly two ways to get there, and which one is legal is decided by the signal rather than by you.

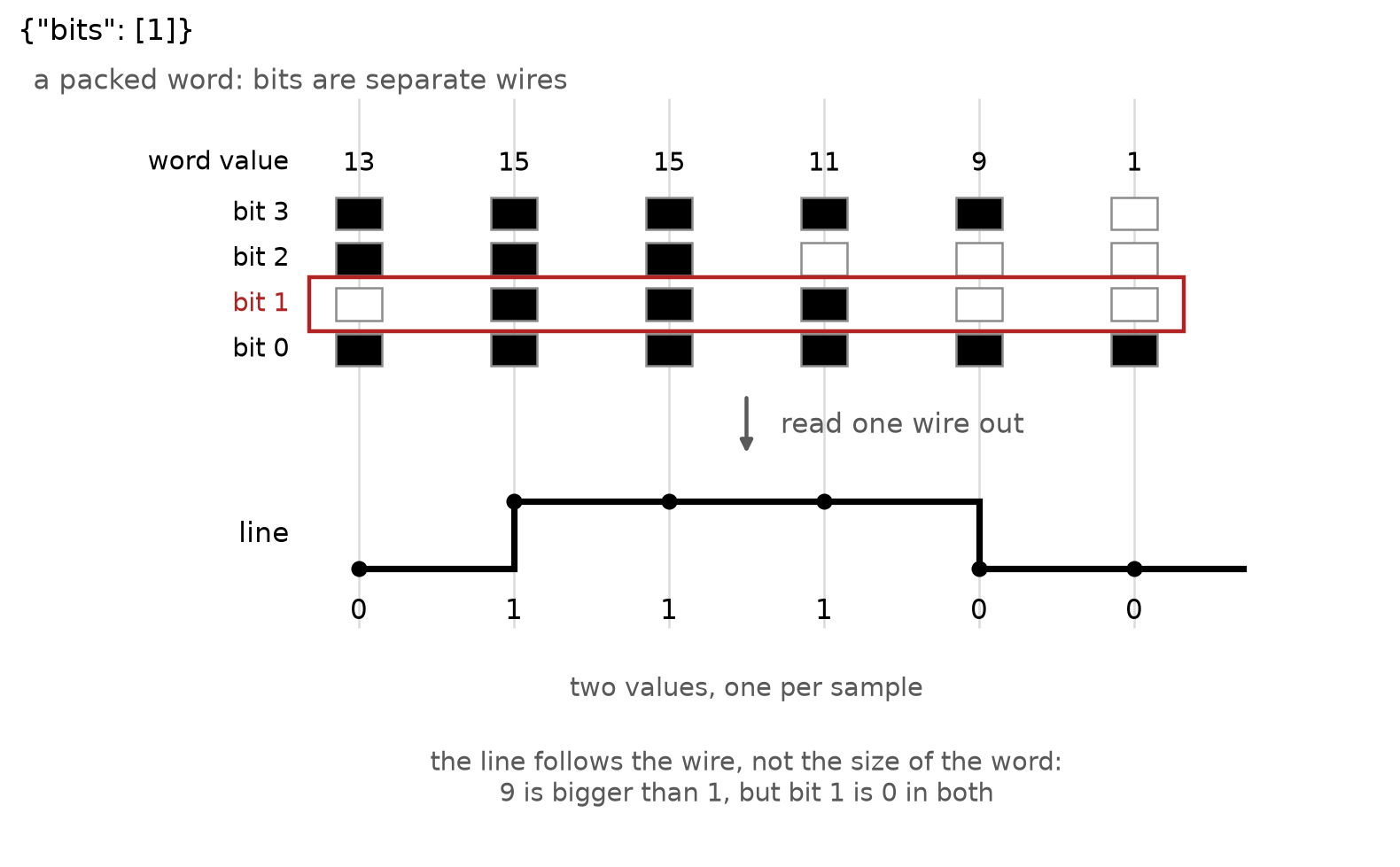

bits

For a packed word, an integer whose bits are separate wires. {"bits": [3]} selects bit position 3 and gives you that wire’s 0/1 line. Name one bit per spec: reading several bits together as one coded value needs a strobe or debounce guard to know when the word has settled, and the two will land together.

The line follows the wire and never the size of the word, which is also why a word cannot be cut with binarize: its value is several signals at once rather than a magnitude.

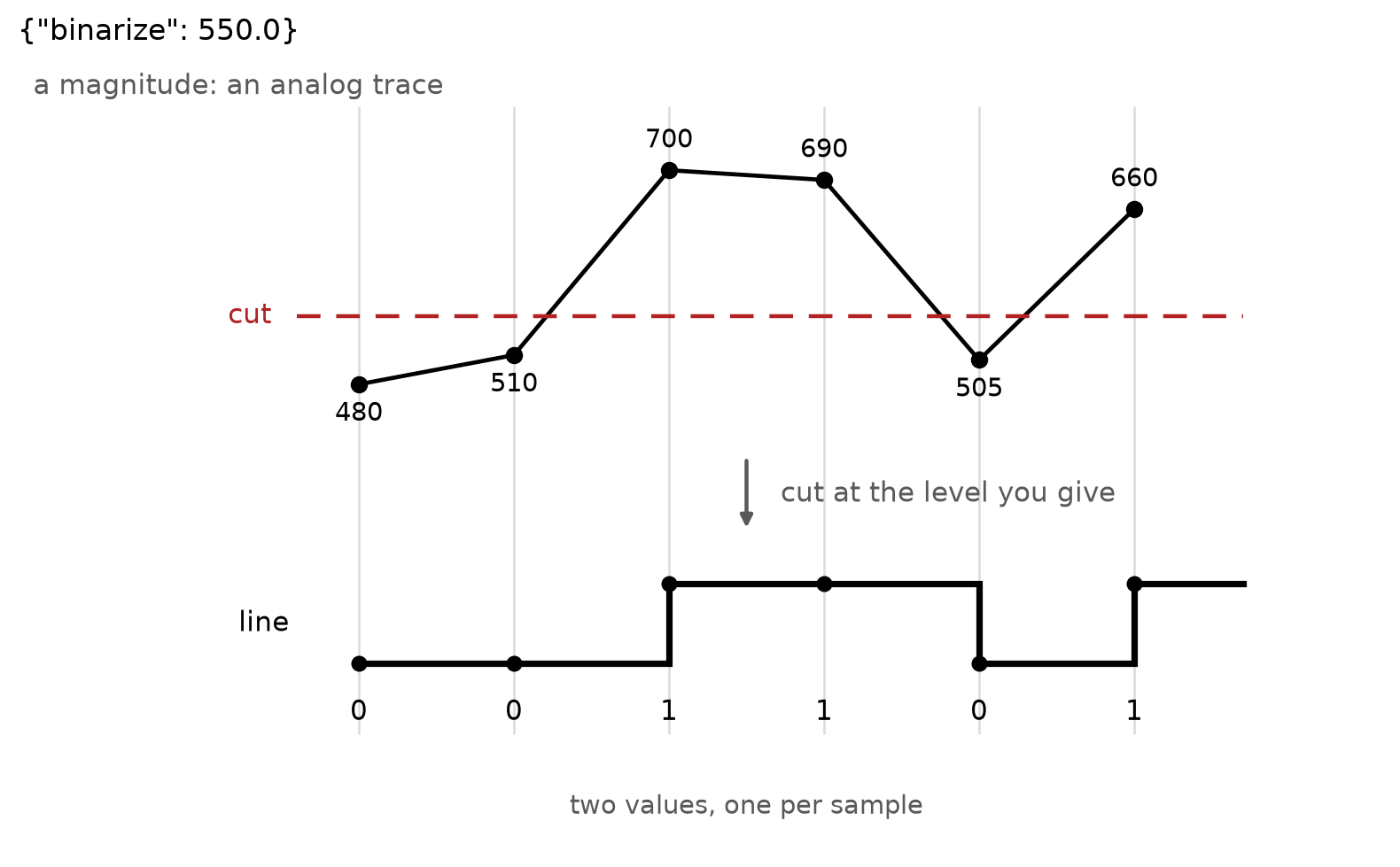

binarize

For a magnitude. It does two jobs that are worth telling apart:

• {"binarize": 550.0} cuts an analog trace at a level you give. This is the case of a TTL wired into an analog input, or a photodiode whose trace you want thresholded.

• {"binarize": "midpoint"} cuts at (min + max) / 2, derived from the data. This is for a signal that is already two-valued, whatever those two values are: a TTL riding between 0 and 5, a line arriving as 0 and 1, a uint16 line at 0 and 65535. The derived cut falls strictly between the two levels, so you do not have to know them. On a genuinely analog trace it is not the right tool, since min and max are then whatever extremes the recording happened to reach and one noise spike moves the cut. Give a number there.

Every spec states its conditioning; there is no default. A spec is all-or-nothing, so a half-filled one is an error rather than a silent fallback, and what an event type was read from is always something you chose. A signal that is already a line still says so, with {"binarize": "midpoint"}.

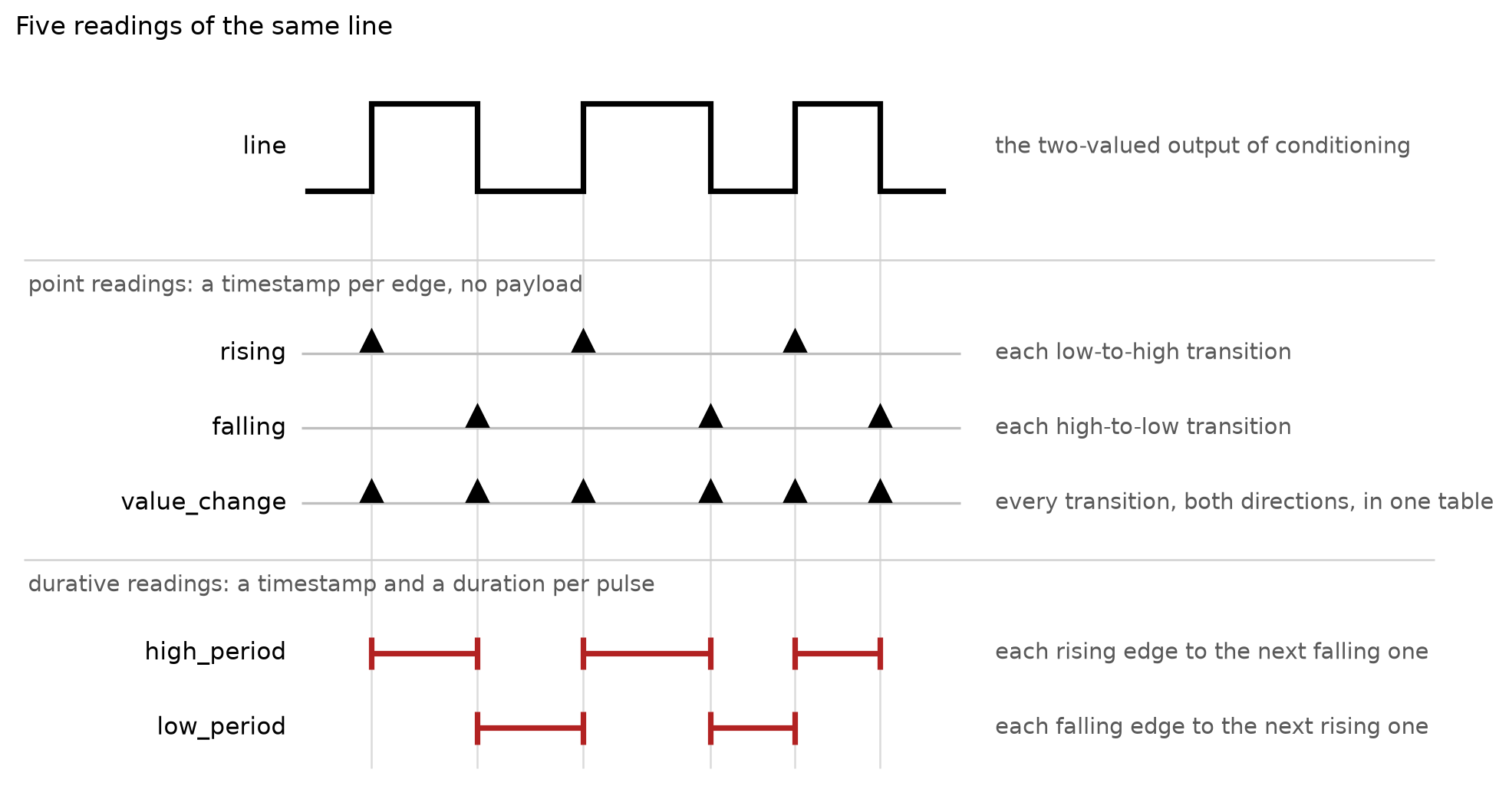

Detection: how a line becomes events

Five readings, in two families.

rising and falling write a timestamp per edge. high_period and low_period write a timestamp and a duration per pulse, and are lossless in the sense that every transition is preserved; low_period is the one to reach for on an active-low line. value_change is rising and falling pooled into a single table rather than two, and carries no payload.

A durative reading whose last event has no closing edge in the recording writes a NaN duration, for an interval the recording truncated.

A spec states exactly one of the two. A signal with more than two levels is read by writing one spec per distinction, on the same signal, which is also how one digital word becomes many event types, one spec per bit.

The detection_configuration argument

The pipeline above is formally described by the detection_configuration argument. It is keyed by signal, and each signal holds a list of specs, one per event type you want derived from it:

detection_configuration = {
    "<signal_source_id>": [
        {
            "signal_conditioning": {...},            # stage one: how this signal becomes a line
            "detection": "<reading>",                # stage two: which transitions become events
            "event_name": "<your name>",             # optional
        },
        # more specs on the same signal, one per event type derived from it
    ],
    # more signals
}

The key is the signal’s own handle, the name the file gives it: "XD0" or "XA3" on a SpikeGLX NIDQ board, "DIGITAL-IN-01" on an Intan header. Construct the interface with no configuration and read get_metadata() to see which handles your own file offers. Its value is always a list, even for one spec, because one signal may yield several event types.

signal_conditioning is required, and controls how this signal is conditioned into a line (illustrated above). It holds exactly one of:

• {"bits": [n]}, one wire selected out of a packed word

• {"binarize": <number>}, a magnitude cut at the level you give

• {"binarize": "midpoint"}, an already two-valued signal cut between its two levels

detection is required, and controls which of that line’s transitions become events (illustrated above). It is one of:

• "rising", a time at each low-to-high transition

• "falling", a time at each high-to-low transition

• "value_change", both directions pooled into one table

• "high_period", each rising edge to the next falling one, with a duration

• "low_period", each falling edge to the next rising one, with a duration

event_name is optional. It is the handle the events metadata is keyed by, so it is what you address to name an event type, describe it, or route it into a shared table. See How to Annotate Discrete Events Metadata.

Four worked shapes

Every configuration is one of these four, whatever the format. Your format’s gallery page has the channel names and a runnable example.

A packed digital word. SpikeGLX NIDQ carries sixteen TTL lines in a single XD word:

detection_configuration = {
    "XD0": [
        {
            "signal_conditioning": {"bits": [0]},
            "detection": "rising",
            "event_name": "trial_start",
        },
        {
            "signal_conditioning": {"bits": [1]},
            "detection": "high_period",
            "event_name": "reward_window",
        },
    ],
}

A signal that already is a line. An Intan digital input is addressed by the header’s own name and needs no threshold, only the assertion that it is already two-valued:

detection_configuration = {
    "DIGITAL-IN-01": [
        {
            "signal_conditioning": {"binarize": "midpoint"},
            "detection": "rising",
            "event_name": "camera_sync",
        },
    ],
}

An analog trace cut at a level. A TTL wired into an analog input, which is a common way to get more lines out of a board:

detection_configuration = {
    "XA3": [
        {
            # the cut is in the signal's stored values, not in volts
            "signal_conditioning": {"binarize": 550.0},
            "detection": "rising",
            "event_name": "stimulus_onset",
        },
    ],
}

One signal read two ways. Both edges of the same line, as two event types:

detection_configuration = {
    "DIGITAL-IN-02": [
        {
            "signal_conditioning": {"binarize": "midpoint"},
            "detection": "rising",
            "event_name": "lever_press",
        },
        {
            "signal_conditioning": {"binarize": "midpoint"},
            "detection": "falling",
            "event_name": "lever_release",
        },
    ],
}

Every spec above sets an event_name. It is optional, but worth writing by default.

The identifier your event type gets is what the events metadata is keyed by. An event_name becomes that identifier directly. Leave it out and the identifier is derived instead: the signal’s own handle when it is the signal’s only spec, or the handle plus its distinguishing components when there are several, giving XD0_bit0_rising or DIGITAL-IN-02_rising. Derived identifiers move when the configuration changes, so adding a second spec to a signal renames the first one and any metadata keyed by the old name stops addressing it. Whichever way they are arrived at, identifiers must be unique across the configuration, and an event_name is required outright when several specs on one signal cut at numbers, as a cut point does not stringify into a stable name.

Doing the detection yourself

detection_configuration cannot always express how your signal becomes your events. A configuration states parameters, so anything that needs an algorithm is out of its reach:

• hysteresis or a Schmitt trigger, for a trace that chatters across the cut

• debouncing a mechanical contact

• an adaptive or drifting threshold, or one derived per trial

• peak detection, template matching, or anything reading the trace’s history

Configure what the grammar can express, take those times out, refine them in your own code, and write the result with the pynwb API directly. Build the file with the interface, add your own EventsTable to it, and write it:

from pynwb.event import EventsTable

from neuroconv.tools.nwb_helpers import configure_and_write_nwbfile

# Everything the interface can do on its own, including writing the raw trace.
nwbfile = interface.create_nwbfile(metadata=metadata)

# The times the configuration resolved to, refined however you need.
times = interface.get_event_times("lever_press")
onsets, durations = your_event_detection_pipeline(times)

# Your own table, added to the same file.
table = EventsTable(name="LeverPresses", description="Lever presses, from your own detection.")
for onset, duration in zip(onsets, durations):
    # check_ragged=False keeps the fill linear: without it hdmf rescans the whole column on
    # every add_row, and every value here is a scalar so the check can only answer False.
    table.add_row(timestamp=onset, duration=duration, check_ragged=False)
nwbfile.add_events_table(table)

configure_and_write_nwbfile(nwbfile, nwbfile_path="session.nwb")

add_events_table puts the table in nwbfile.events, which is where the events interfaces write too, so a file assembled this way is the same shape as one written entirely by NeuroConv.

Limitations and gotchas

A configuration is a selection, so it drops the signals it does not name. Passing none (detection_configuration=None, the default) derives every signal the file’s header declares, each with the interface’s default reading. Passing one gives you only what you named, and nothing warns about the rest, as naming a subset is the ordinary way to avoid writing empty tables for lines nothing was wired to. Either name every signal you want and keep that list current with your rig, or name none and accept some empty tables. Mixing the two is what loses a line. An empty configuration, {}, raises instead of writing nothing, as selecting nothing is normally a mistake.

Cut points are in stored values, not in volts. At the moment a binarize cut is compared against the numbers the file holds. The companion TimeSeries written for the same channel declares its physical unit and a conversion factor, so the two numbers differ. Read the traces off the interface’s extractor to see the values your cut is compared against.

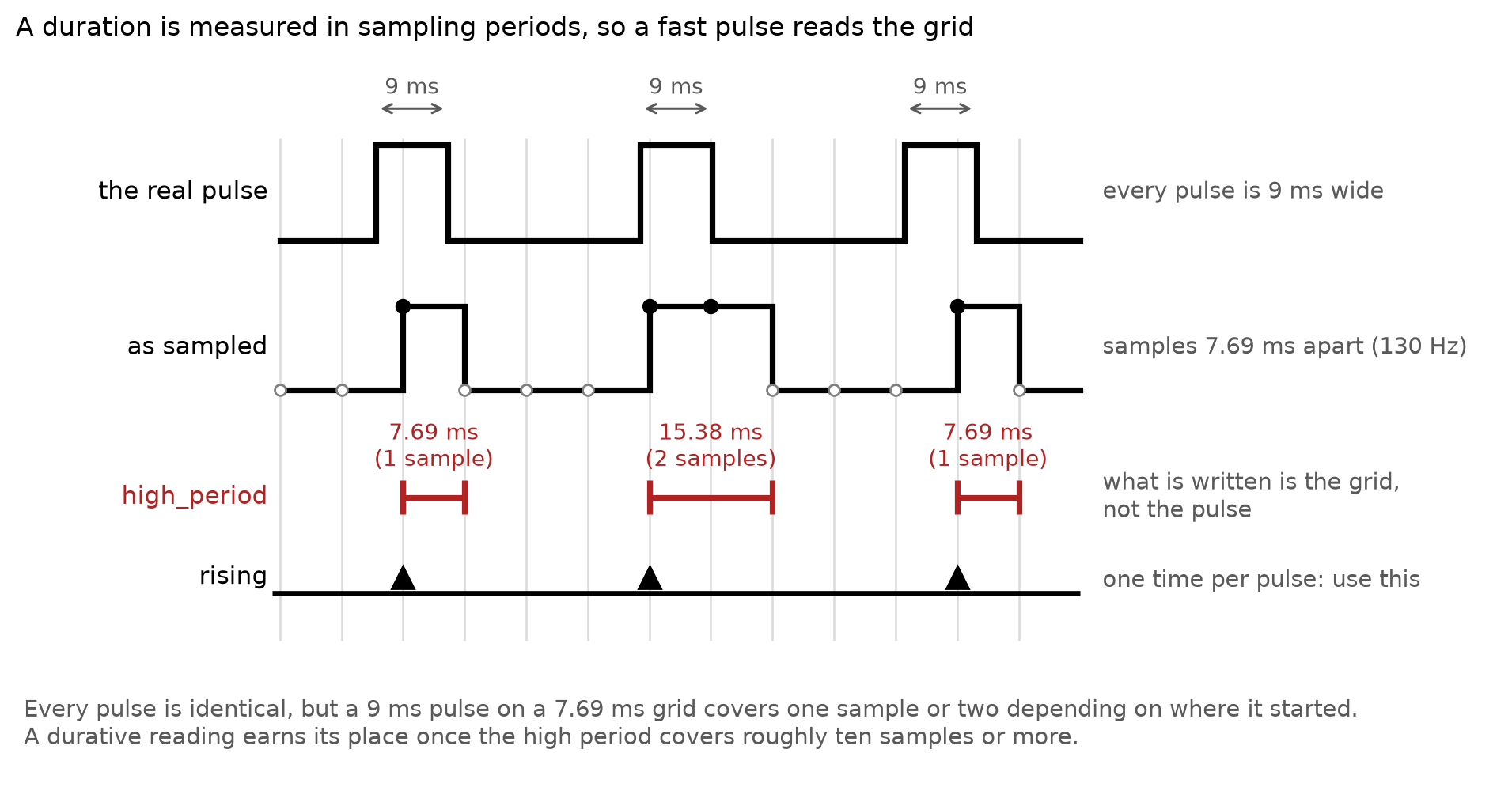

A duration can be the sampling grid instead of the pulse. high_period and low_period measure a duration in sampling periods, so they are ill-defined when the sampling rate is too low for the pulse. A 130 Hz line samples every 7.69 ms, so a camera’s frame-out pulse covers one sample or two depending on where it started, and its duration reads 7.69 ms or 15.38 ms though every pulse is identical. What gets written there is the sampling grid, not the pulse.

Use rising on such a line. A durative reading earns its place once the high period covers roughly ten samples or more, a trial gate or a lever hold, where one sample of quantization is a small fraction of the real duration.
